Cut To Size Laminated Safety Glass-AS/NZS 2208: 1996, CE, ISO 9002

We are experienced in custom-made Laminated Safety Glass at Size, Colors, Shapes and Make-up,.
1. Size Available
Big size, max. 13000mm, and can also cut big size to be small sizes customers need.
2. Colors Available
Clear, White, Grey, Bronze, Green, Blue,Fordblue, any color you want.
3. Shapes Available
Rectangle, Square, Round or even Triangle and Trapezoid
4. Make-Ups Available
Thickness from 4.38mm to 32.28mm, two sheets of Glass or Triple Sheets of Glass, Annealed Glass or Tempered Glass and Heat Strengthened Glass, Float Glass or Patterned Glass
Availability:
  • NEO GLASS

CUT TO SIZE LAMINATED SAFETY GLASS --AS/NZS 2208: 1996, CE, ISO 9002

Brief Introduction

Laminated Glass is used widely in residential or commercial building as Safety Glass. We can make it with two sheets of glass or more with PVB or SGP. That make-up let Laminated Glass have the property of stealing-resistant and glass anti-splash. That is why Laminated Glass is called safety glass.Besides,our Laminated glass can be energy efficiency, acoustic, or even hurricane-resistant with Dupont SGP.  The two sheets of glass can be annealed, tempered, heat strengthened and ceramic frit. They can also be float glass, patterned glass,low e, silvermirror and painted glass.

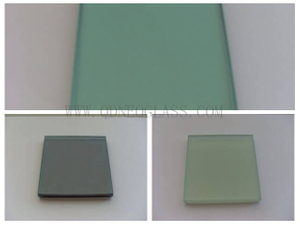

Color Available

According to the colors of Float Glass or Glass Interlayer, Laminated Glass is available with various of colors besides of Clear Laminated Glass, such as White Translucent, Grey, Euro Grey, Dark Grey, Bronze, Blue, Dark Blue, Light Blue, Fordblue, Green, Light Green etc. PVB is also available in different colors, that solve the availability limit of Tint Float Glass and makes Laminated Glass more colorful.

Custom-Made Laminated Glass

We not only do Custom-Made Color Laminated Glass, we also do Laminated safety glass at Custom-Made Size, Shape and Make-up. For example, Cut To size Laminated Glass, Round/Irreguar Shape Laminated Glass, Tempered Laminated Glass, Heat Strengthened Laminated Glass, SGP Tempered Laminated anti-hurricane Glass are all avaiable.

Blue Heat Strengthened Laminated Glass 5    Grinded Clear Laminated Glass      Cut to Size Black Laminated Glass



Production Process

Laminated Glass is processed mainly in three period. First of all, Pre-Laminating two sheets or more sheets of glass with PVB or SGP; Then Cooking Pre-Laminated Glass on Autoclave with Pressure about 13 PA and High Temperature around 135℃ ; the last step is Packing.If it is Tempered Laminated Glass, certainly the glass should be toughened firstly before pre-laminating. Our Tempered Glass conbining to Laminated Glass can be processed with Polished Edges,Holes, Cut-Outs or in Irregular Shape.


Quality Control and Glass Features

In order to provide our client with Top Quality Products, we have strict in house Quality Control System according to AS/NZS 2208: 1996, ISO and CE.

I.   Longer Lifetime, Less de-Lamination Rate

II.  High Quality of Raw Glass and PVB & Ionoplast Interlayer (SGP)

III. Flat items with Good Flatness control within 0.2%, even within 0.1% for small cut to size items

IV.Size Tolerance controlled:

            Within 1mm for Cut To Size and Raw Glass size( same color glass);

            Within 1mm for Cut To Size items 2000mm with Grinded Edges;

            Within 1.5mm for Cut To Size Items 3000mm with Grinded Edges;

V. Strict Control on Visible Defects and Chips

VI.Solutions of Breakage Problem in Transportation:

          1.  Unique Professional & Stonge package--Plywood End Cap ,Plywood crate, Plywood A Frame, Metal Package etc;

           2. Container Loaded technology

VII.Thickness:  4.35-32.28mm;

     Size: Cut to Size, Custom-made, Max 18000mm


On-Time Delivery


Delivery time for big size is in 10-18 days and for custom-made items in 18-28 days. If clients have special requirement on that, we would try our best to make some adjustment to satisfy with them.


Application

Laminated glass can be used as Curtain Wall, Door & Window, Roof, Balcony, Balustrade, Partition,Step,Table, Cabinet, Wardrobe,wherever you would like to use.

With certificates of AS/NZS 2208: 1996 and CE, the glass is popular in Australia and New Zealand Market, Europe, USA, Canada and South of America

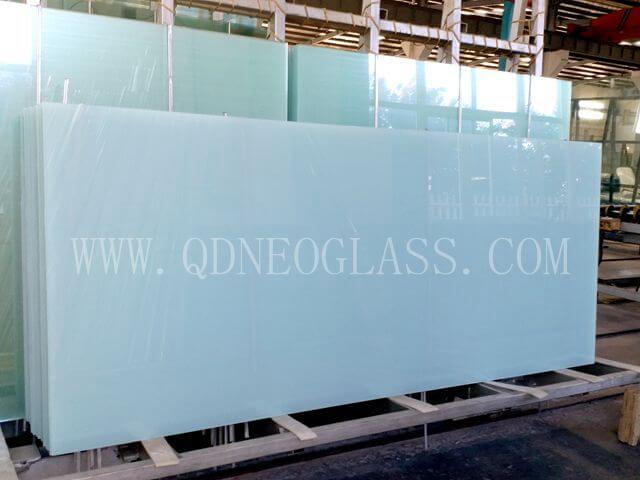

White TRANSLUCENT LAMINATED GLASS,Milky White Laminated Safety Glass, Opal White Laminated Safety Glass     Tempered Laminated Glass, Triple Tempered Laminated Safety Glass, Laminated Glass Door, Laminated Glass Wall, Laminated Glass Window, Laminated Glass Sliding Door, Laminated Glass Partition, Laminated Glass Fence,Opal Laminated Safety Glass, Milky White Laminated Safety Glass,White Translucent Laminated Glass  Clear Tempered Laminated Glass,Triple Laminated Glass, Security Glass, Custom-made Laminated Safety Glass, Blullet-Proof Glass, Laminated Glass Door, Laminated Window Glass,Milky White Laminated Glass, Opal White Laminated Safety Glass,White Translucent Laminated Glass


Safety Exporting Package

Our package can be custom-made. We use high quality of material to make sure all glass is protected well when customers receive it after long time transportation.

Laminated Glass Strong Package

Professional Container Loading Fasten

Our professional loading Team ensure glass is fastened 100% strong.


Laminated Glass Container Fasten


Size: Max. 18000 mm, Custom-made Sizes are available

Thickness: Min 4.38mm

Certificates: AS/NZS 2208: 1996, CE, ISO 9002

Raw Glass:   Float Glass, Annealed Glass, Patterned Glass, Low E Glass, Low Iron Glass

Glass Process:
           Float Glass with Edgework, Tempered Glass with or W/O Hole or Cutouts or
           Ceramic Frit, Heat Strengthened Glass,Silver Mirror, Back Painted Glass

Glass Color: Clear, Low Iron, Grey,F-Green, Blue Etc

Glass Interleave: Qualified China PVB, Solutia PVB, Dopunt PVB, Dopunt SGP
                           or other brand appointed by customers

Interleave Color: Clear, White Translucent, Grey, Bronze, F-Green, Blue etc.

Interleave thickness:  PVB-0.38mm, 0.76mm,1.14mm, 1.52mm
                                 SGP-0.89mm, 1.52mm, 2.28mm

Package: Plywood End Cap, Plywood Crate, Metal End Cap, Naked Package for A Fame,
              Carton Package, Pallet Etc.


We have a Laminated Glass Cutting Machine to cut our big Laminated Glass to be small size. That machine is more efficiency in the cutting than it does by hand-man. Then delivery time is faster.
