Low Iron Tempered Glass-AS/NZS 2208: 1996, CE, ISO 9002

Low Iron Tempered Glass is ultra clear Tempered glass with high visible light transimittance and less iron.It is called supper white Tempered Glass in Australia and Starphire Tempered Glass in America.
1. High safety: low spontaneous breakages, about 0.03%, 10 times less than common clear float glass
2. High transmittance: visible light transmittance near 92%, 6% higher than clear float glass.
3. High aesthetics: More beautiful ,elegant & noble than clear float glass
4. Friendly environment with very little iron--less than 100ppm
5. Application: Showcase, Shower Glass, Furniture,Interior and Exterior decoration of the Buildings
Availability:
  • NEO GLASS

Low Iron Tempered Glass--AS/NZS 2208: 1996, CE, ISO 9002


Low Iron Tempered Glass is one kind of Ultra Clear Safety Glass. The visible light transimitance of our Low Iron Tempered Glass is about 91.8%. And its iron content is approximate 100ppm, about 1/10 of the one in clear float glass, that makes its color extra clear. Because of less impurity, spontaneous breakage rate of Low Iron Tempered Glass is only about 0.03%, about 10 times less than clear float glass. After heat soaking process, that risk can decrease by 10 times. The appearance of Low Iron Tempered Glass make the building noble & elegant.



Our Low Iron Tempered Glass can be processed to be Laminated Glass or be IGU. If the glass is used to produce Laminated Glass, its flatness must be control strictly to avoid bubbles or delaminating problem between two or more sheets of glass laminated.



Our Low Iron Tempered Glass can be processed with Hole, Cutouts, Polished Edges, Safety Corners or in Irregular Shape. Besides, it can also be Heat Soaked to less the possibility of Self-Bomb. And it is popular used as Showcase, Shower Glass, Door & Window Glass, Pool Fence Glass,Balustrade Glass, Balcony Glass,Bathroom Glass, Floor Glass, Sliding Door glass,Furniture Glass,Table Glass etc.



Brief Introduction

Low Iron Tempered Glass (Ultra Clear, Extra Clear) has much better performance than common Float Tempered Glass.

The visible light transimitance of our Low Iron Tempered Glass is about 91.8%. And its iron content is approximate 100ppm, about 1/10 of the one in clear float glass, that makes its color extra clear. Because of less impurity, spontaneous breakage rate of Low Iron Tempered Glass is only about 0.03%, about 10 times less than clear float glass. After heat soaking process, that risk can decrease by 10 times. The appearance of Low Iron Tempered Glass make the building pretty noble & elegant.

Low Iron Tempered Glass can be Polished around, and its corners can be tipped for safety if neccessary. Considering its installation, holes or cutouts are available.

Low Iron Tempered Glass still has the Safety Property of Tempered Glass. It can become thousands of small glass pieces without sharp tips once it is broken. One or more sheets of  Low Iron Tempered Glass can be Laminated to become Laminated Glass. Some customers prefer to use Low Iron Tempered Glass as Shower Door or Sliding door.


Customization Flexible

We are experienced in custom-made Tempered Low Iron Glass at different sizes, colors and shapes, or even laminate them with PVB.

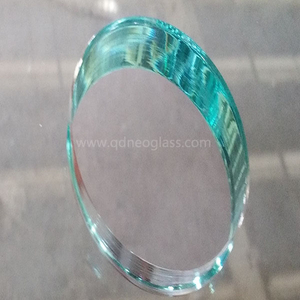

It can be processed with Hole, Cutouts, Polished Edges, Safety Corners or in Irregular Shape

Tempered Glass With Polished Edges

Tempered Low Iron Glass Panel


Tempered-Ultra-Clear-Glass-Shelf

Toughened Ultra Clear Glass Shelf

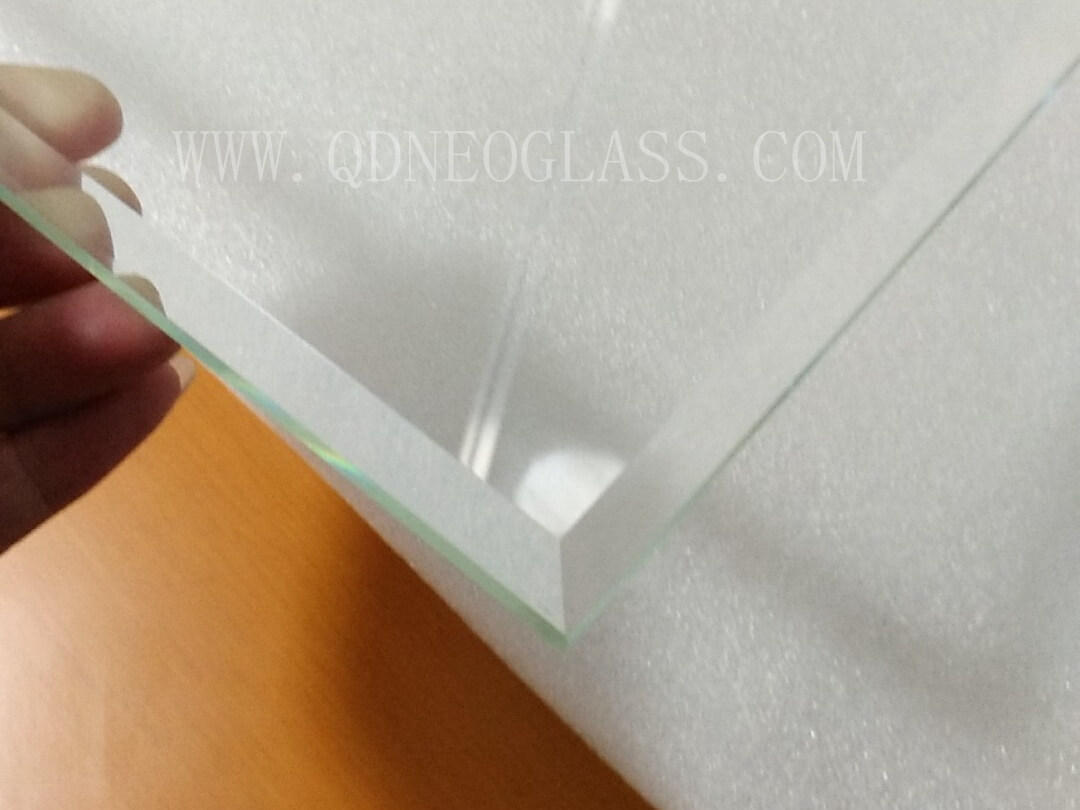

Tempered Ultra Clear Glass, Beveled Edge 10mm with bottom Edge Flat Polished edge 5mm _副本

Beveled Tempered Extra Clear Glass


Quality Control

Our products are made in complliance with AS/NZS 2208: 1996, ISO and CE.  People on the floor inspect one by one so that all problems can be found and solved in house.

The company controls glass bent not over 0.2%, much better than standards require. Chips and cracked are not acceptable. High quality raw glass,Strict quality control and Professional Team, those factors make its spontaneous break risk very low compared to others companies in the line.

Features

I. Longer Lifetime, Lower Spontaneous Breakage Rate, Good Tempering Glass Particles Quantity


II. High Quality Raw Glass made by China Top Level Manufacturers


III. Flat Tempered Glass with flatness within 0.2%, even within 0.1% for some items


IV. Size Tolerance:  within 1mm for sizes 2000mm;

                               within 1.5mm for sizes 3000mm


V. Thickness Tolerance: Within 0.2mm


VI. Strict Control on Visible Defects and Chips


VII. Solutions of Breakage problem in Transportation

  •              Unique Stonge Package

                      --Plywood End Cap, Plywood Crate,Plywood A Frame, Metal Package, Individual Carton Package;

  •              Professional Container Loaded Technology


VI. Thickness: 3mm to 25mm

     Size: Custom-made, Max 18000mm


On-Time Delivery

Delivery time for Tempered Low Iron Glass is in 15-25 days. That is negotiable if there is Ultra Clear Float Glass stock . For special custom-made ones, that is in 28-35 days.


Application

Tempered Low Iron Glass is more popularly used in Showcase,Shower Room,Sliding Door, Shop Front, Furniture etc, such as what Apple Shop does.


Strong Exporting Package

We use High Quality fumigation free material to make our package--Plywood and Metal. To use Plywood or metal is up to the choices of customers.

Custom-Made service is acceptable.

Strong Package Of Tempered Glass Door Panel


Professional Container Fasten

Our container loading team is experience in the line. The container fasten is very strong, then the glass can bear long time transportation by sea and by road without damagement.

Container Fasten

Other Information

Size: Max. 18000mm

Thickness: 3mm-25mm

Certificates: AS/NZS 2208: 1996, CE, ISO 9002

Glass:   Low Iron Glass

Glass Color: Low Iron Clear

Glass Process: Hole, Cutout, Heat Soaked, Polished Edges, Ceramic Frit Glass, Irregular Shape

Package: Plywood End Cap, Plywood Crate, Metal End Cap,Carton Package, Pallet Etc.


TEMPERED EXTRA CLEAR GLASS SHELF

Toughened Low Iron Glass Shelf


Tempered Curved Low Iron Glass

Curved Tempered Ultra Clear Glass


Tempered Enclosure Glass

Tempered Shower GLass Louvre
